Setting Up VPN in Windows 7 for Dummies


VPN (Virtual Private Network) technology lets a computer using a public Internet connection join a private network by way of a secure "tunnel" between that machine and the network. The most common case is a business allowing its employees to connect to its work network from home or from the road.

There are two principal ways to configure VPN. The first and more-common scenario, called outgoing, is setting up a remote computer to call into the office network. The second scenario, called incoming, occurs on the network side, where a computer allows secure connections from other computers. Windows 7 comes preloaded with the Agile VPN client, which makes setting up either kind of connection relatively easy.
Step by Step: Connecting to a VPN (Outgoing)

Step 1 Click the Start button. In the search bar, type VPN and then select Set up a virtual private network (VPN) connection.

Step 2 Enter the IP address or domain name of the server to which you want to connect. If you're connecting to a work network, your IT administrator can provide the best address.

Step 3 If you want to set up the connection, but not connnect, select Don't connect now; otherwise, leave it blank and click Next.

Step 4 On this next screen, you can either put in your username and password, or leave it blank. You'll be prompted for it again on the actual connection. Click Connect.

Step 5 To connect, click on the Windows network logo on the lower-right part of your screen; then select Connect under VPN Connection.

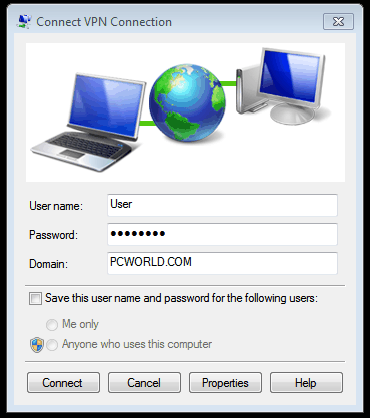

Step 6
In the Connect VPN Connection box, enter the appropriate domain and your log-in credentials; then click Connect.

Step 7 If you can't connect, the problem could be due to the server configuration. (There are different types of VPN.) Check with your network administrator to see what kind is in use--such as PPTP--then, on the Connect VPN Connection screen, select Properties.

Step 8
Navigate to the Security tab and select the specific Type of VPN from the drop-down list. You may also have to unselect Include Windows logon domain under the Options tab. Then click OK and Connect.

Step by Step: Building a VPN (Incoming)


Step 1 Click the Start button, and, in the search bar, type Network and Sharing.

Step 2 Click Change Adapter Settings in the left-hand menu.

Step 3 Click File, and then New Incoming Connection.

Step 4 Select the users you'd like to give access to and click Next.

Step 5 Click Through the Internet and select Next.

Step 6
Select the Internet Protocol you'd like to use. (The default TCP/IPv4--the line highlighted in the screenshot below--will work fine.)

Step 7 Finally, click Allow access; you've now set up an incoming VPN connection.
